Problem
  • Design a Linear Robot using 8020 Inc. parts:
    • Move a 20 lb payload at a maximum of 48"/sec
    • Achieve ± 0.010" repeatability
    • Provide 18" X travel, 20" Y travel, 6" Z travel, unlimited Theta rotation

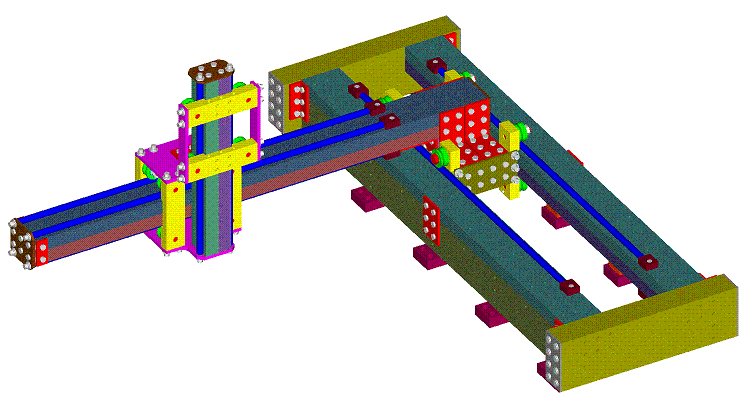

Solution: 4-Axis XYZT Linear Module Robot
  • Low cost design supports applications in medium duty load cycles.
