Problem
  • Build a rigid, low cost machine frame that can support automation subsystems.

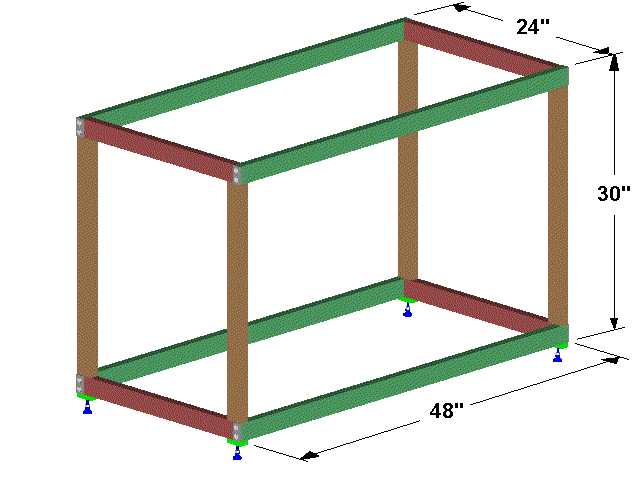

Solution: Modular 8020 Frame

  • Modular 8020 frame whose overall dimensions (width = 24", depth = 48", height = 30") can be modified to user specifications.

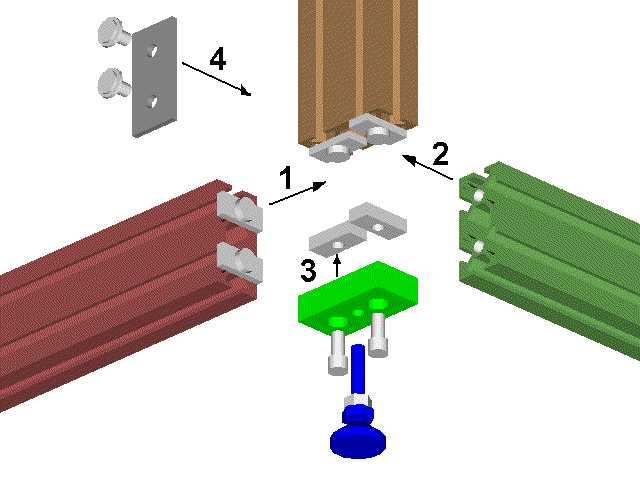

Exploded Assembly View Of Bottom Support
  • Order of assembly:
    • After T-nuts have been loosely attached, (1) slide horizontal leg onto vertical leg, tighten through access holes
    • (2) Slide other horizontal leg in to place and tighten through access holes
    • (3) Fasten block to bottom legs, attach level foot
    • (4) Attach cover plate

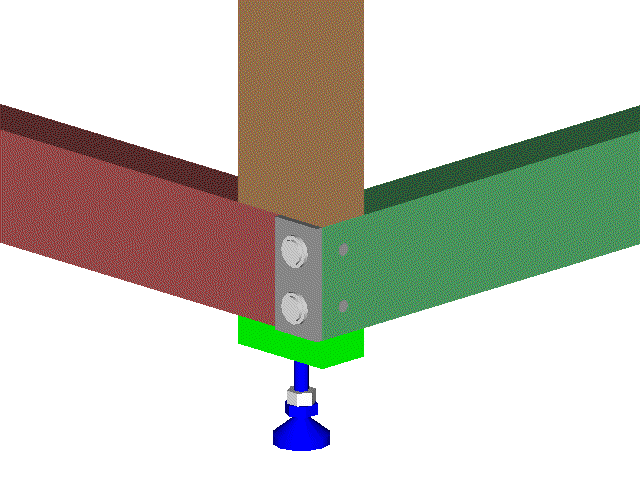

Close Up View Of Bottom Support

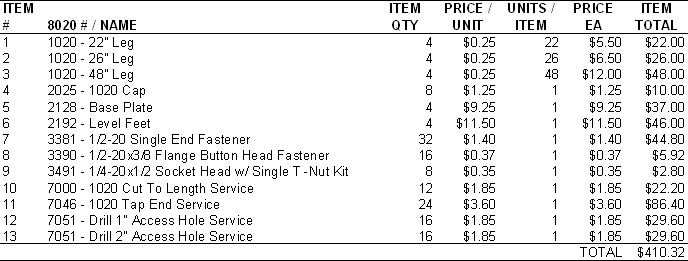

BOM Of Modular 8020 Frame
