Problem

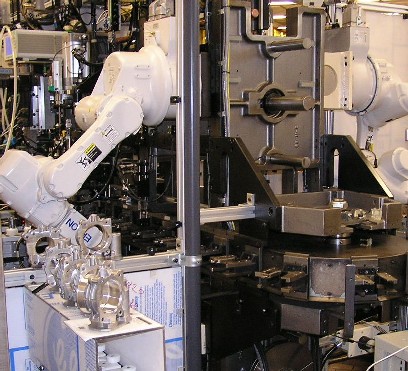

  • Design a robotic workcell that loads and unloads cast aluminum injector bodies between conveyors and assembly machine fixtures.
Solution: Robotic Part Loader/Unloader System

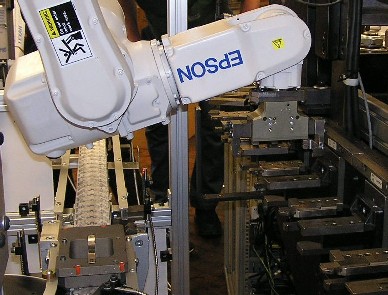

  • Three Epson ProSix robots perform 3 second cycles in synchronized motion with assembly machines.

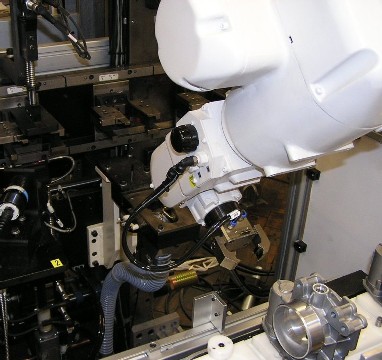

  • Robots grip automotive castings from either the side or top.
  • Castings are flipped and rotated during cycle motion.
  • System safety enhanced with collision avoidance strategy that monitors indexer and assembly machine and restricts robot motion in real time during critical-space tasks.
  • Advanced recovery strategy allows for fully automated system initialization, even from intermediate or unknown robot positions.





Photographs courtesy of Bosch Automotive
